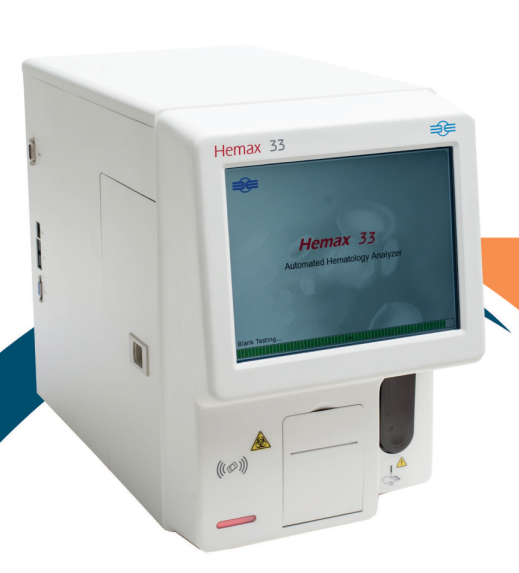

Hemax 33

Automated Hematology Analyzer (3-part)

Only 2 Reagent System

• Principle: Electrical Impedance method for WBC/RBC/PLT, Cyanide free colorimetry for Hgb
• Parameters: 21 Parameters WBC,LYM#,MID#,GRA#,LYM%,MID%,GRA%, RBC,HGB,HCT, MCHC,MCH, MCV,RDW-CV,RDW-SD, PLT,MPV,PDW,PCT,P-LCR, P-LCC
• Analysis Mode: Whole blood, Peripheral & Prediluted
• Sample Volume: Whole blood 9.8 ul, Prediluted Mode 20ul
• Counting Chambers: Dual Chambers WBC and RBC
• Throughput: 60 Samples/hour
• Data Storage Capacity: 50,000 sample results with histograms
• Printer Facility: Inbuilt thermal printer 55mm paper
• External Connectivity: 4-USB & 1-RS232 port support external printer and LIS/HL7 system
• Reagents: Diluent 20L, Lyse 500ml, Probe Cleaner 100ml for maintanance
• Maintenance: Automatic powerful cleaning procedures from software side
• Control & Calibration: 3-level, LJ with manual & automatic calibration
• Power Requirement: Standard AC 220V ±22V, 50Hz, 200VA
• Environmental Condition: Room temperature, 15°C-35°C- Relative Humidity: 10% – 90%, Atmospheric Pressure: 70 kPa- 110 kpA
• Weight: Net- 20 Kg
• Dimension (L X W X H): 270 X 500 X 390 mm
